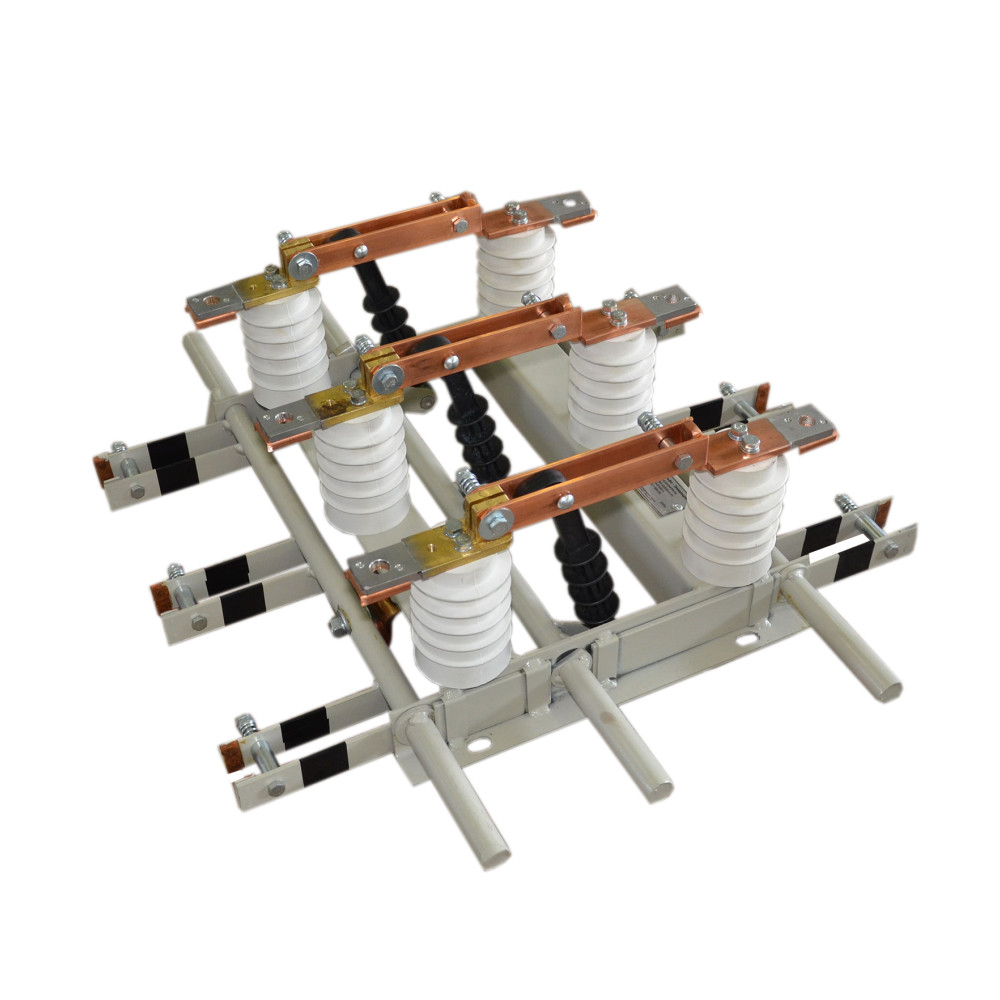

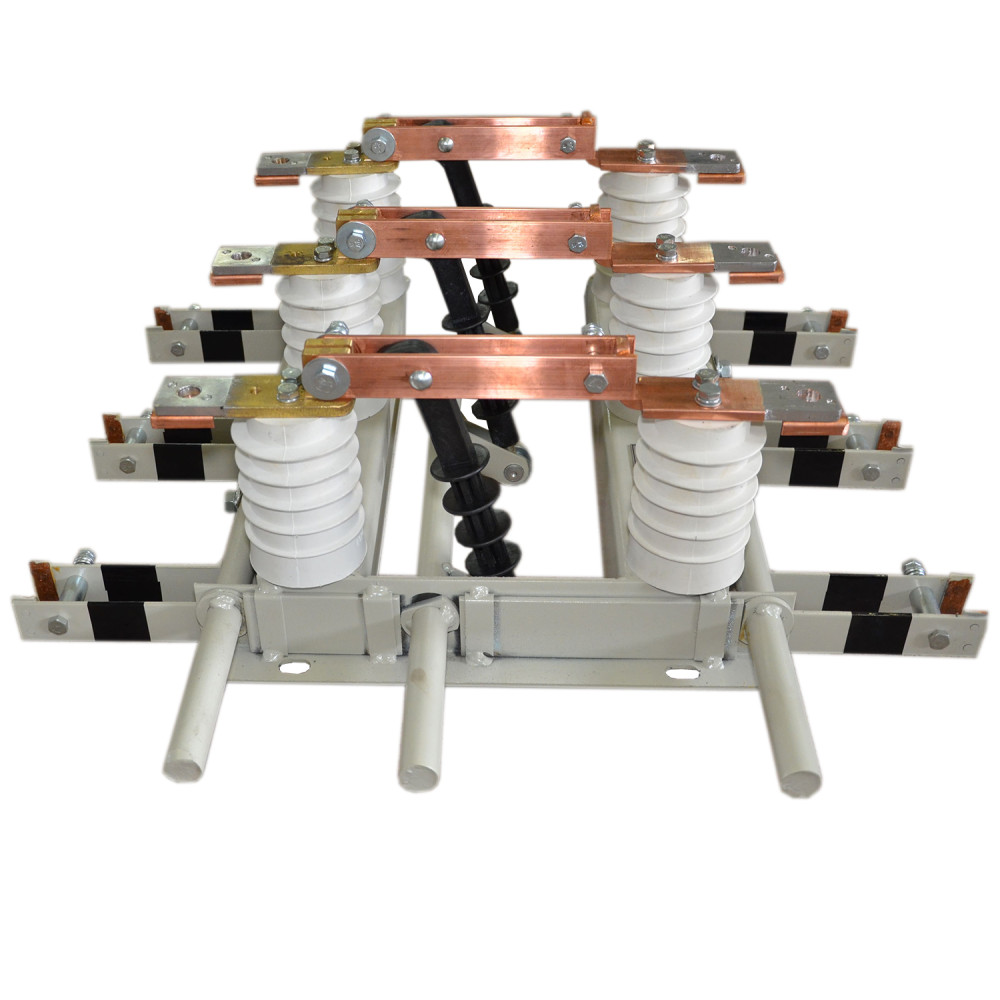

Disconnectors of internal installation 6-35 kV

Disconnectors of the RV, RVZ series for a rated voltage up to 10 kV and currents of 400, 630, 1000, 1600 A are manufactured in accordance with GOST 689-90 and are designed to turn on and off de-energized sections of an electrical circuit that are under voltage, as well as to ground disconnected sections when help of earthmen. R - disconnector. B - indoor installation. Z - with grounding knives. 10 - rated voltage, kV. 630 - rated current, A. I, II, III - design according to the location of the grounding knives. U3 - climatic version and placement category in accordance with GOST 15150-69.

Implementation options
RV-10/630 U3 Disconnector for internal installation for rated voltage 10kV and rated current 630A, with an interphase distance of 200mm, climatic modification "U", location category "3" according to GOST 15150-69.

RVZ-6/400 I U3 Internal disconnector for rated voltage 6kV and rated current 400A, with an interphase distance of 200mm, grounding blades are located on the side of detachable contacts, climatic version "U", placement category "3" according to GOST 15150-69.

RVZ-10/1000 II U3 Disconnector for internal installation for rated voltage 10kV and rated current 1000A, with an interphase distance of 200mm, grounding knives are located on the side of hinged contacts, climatic version "U", placement category "3" according to GOST 15150-69.

RVZ-10/630 III U3 Disconnector for internal installation for rated voltage 10kV and rated current 630A, with an interphase distance of 200mm, grounding knives are located on the side of hinged and detachable contacts, climatic version "U", location category "3" according to GOST 15150-69 .
