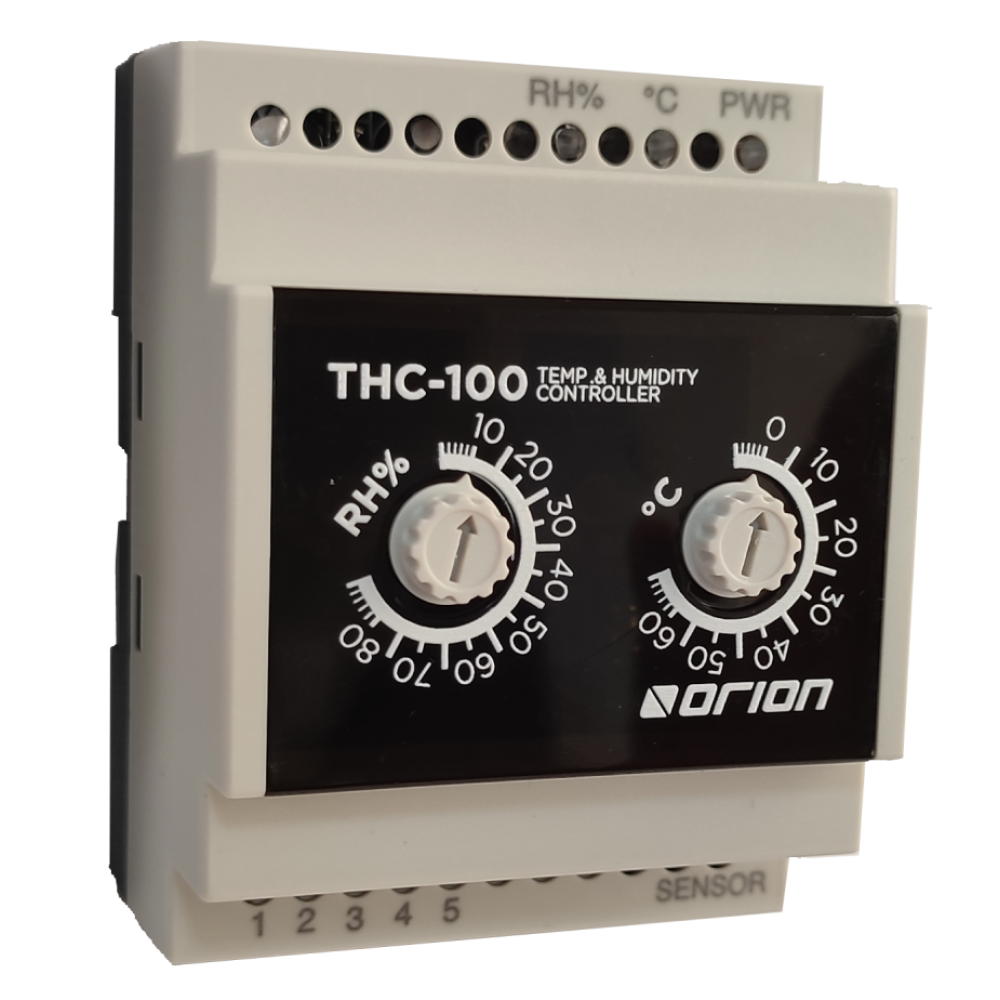

Temperature and humidity controller THC-100

THC-100 is a temperature and humidity controller with an external sensor. When the ambient temperature is under the set threshold temperature value or the ambient relative humidity is over the set threshold value, the output relay is triggered. A heating resistance connected to the output relay can be energized and controlled to increase the ambient temperature and decrease the relative humidity.

Features

The THC-100 is designed to control temperature and relative humidity by means of heating resistance in order to prevent high humidity or low temperature levels. The device is equipped with one sensor input, one relay output and two analog inputs for setting threshold values. The relay is programmed to change positions when the ambient temperature is lower than the set temperature or the ambient relative humidity is higher than the set value. Accordingly, temperature increases, and the relative humidity decreases depending on the increasing temperature.

The relay can be used for activating a heating resister to increase the ambient temperature or active a led or a buzzer to alarm the personnel.

LED indicators are placed on the top of the device to show the auxiliary voltage, temperature and relative humidity status.
