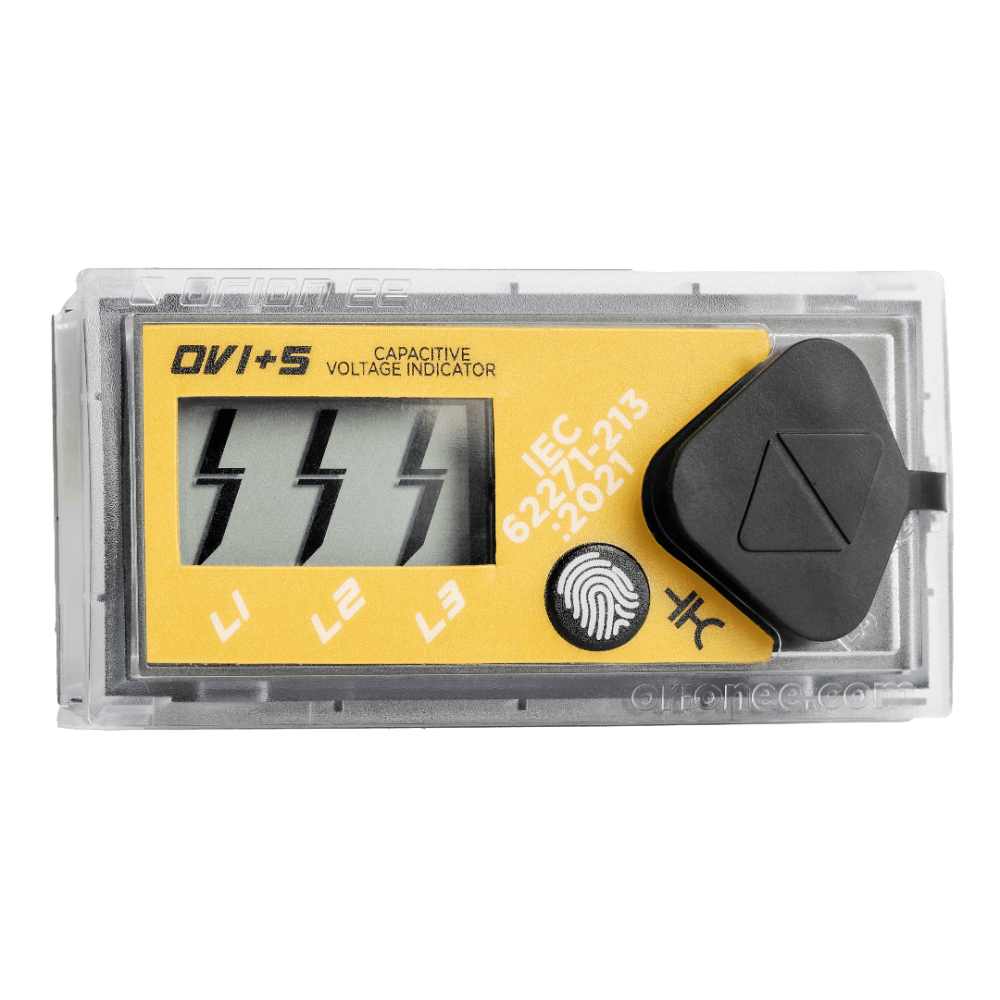

Capacitive voltage indicator OVI+S 3rd Gen

LRM interface, IEC 62271-213:2021 compliant integrated voltage detecting and indicating system with a variable capacitor module and 2 AMP connections, display test function.

Compliant with IEC 62271-213:2021, OVI+S 3rd Gen has an optional variable capacitor module that allows you to change the capacitor value as per your needs and 2 AMP connections which can be used with fault indicators.

The LCD screen of the OVI+S can be tested with the "Display Test" button on the front and it leaves no room for doubt about its work. With over voltage indication, you will know when the overvoltage is present in your system.

Note: IEC 62271-213:2021 is the combination of the contents of two standards (IEC 61243-5 and 62271-206:2011).

Features

• IEC 62271-213:2021 compliant

• Easy for installation and maintenance free
• No auxiliary power is needed for voltage detection
• 3 Phase LCD with bigger screen
• Testing points for measuring at front panel
• Overvoltage Indication
• 2 AMP connections (optional)
• 2 Stage of indication
• Integrated test point, display test function without any auxilary power
• Variable capacitor module (optional)
