End couplings for single-core cables up to 10 kV

End couplings of types 10PKVTpON, 10PKNTpON, 10KWTpON, 10KNTpON are designed for hermetic termination of single-core power cables and for connecting such cables to electrical devices of external and internal installations or overhead power lines with a voltage of up to 10 kV.

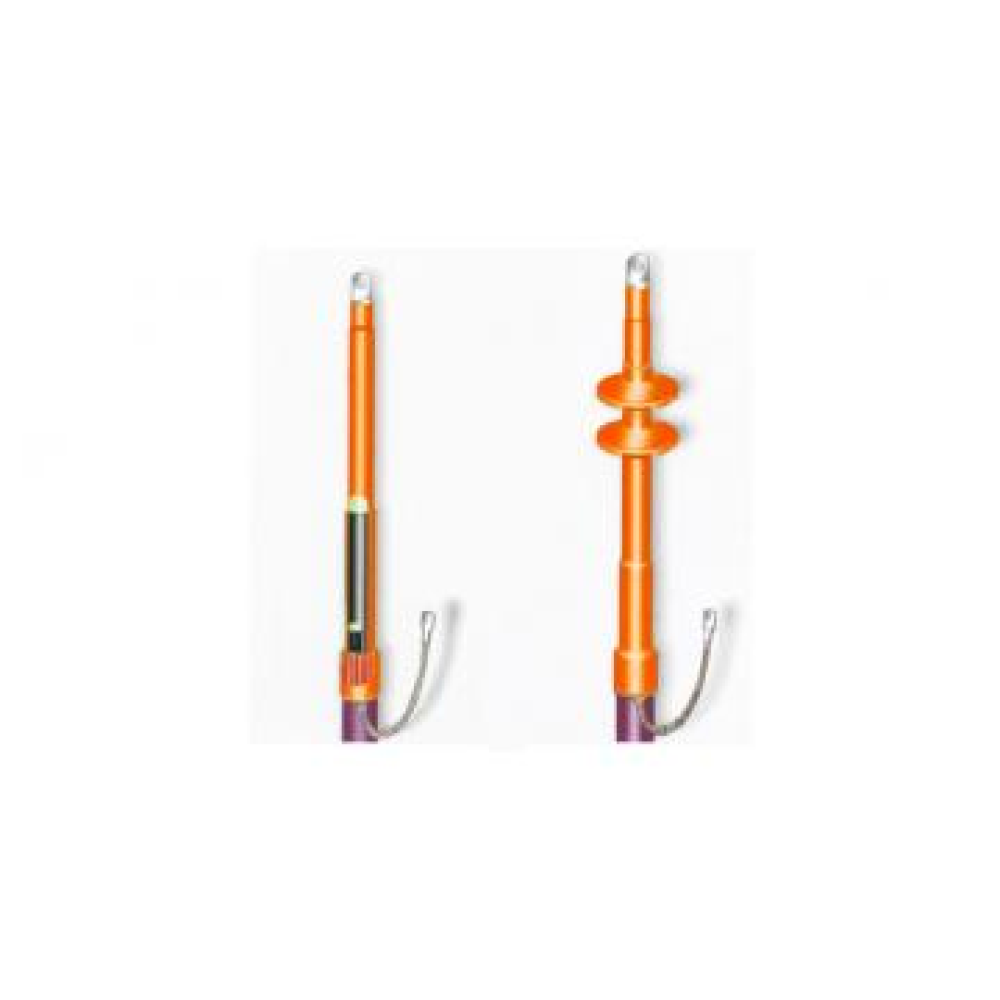

End couplings of the internal installation for single-core cable with plastic insulation for voltage up to 10 kV:

10PKVTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

10PKVTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

10PKVTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

10PKVTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

10PKVTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

10PKVTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

End couplings of the external installation for single-core cable with plastic insulation for voltage up to 10 kV:

10PKNTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

10PKNTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

10PKNTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

10PKNTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

10PKNTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

10PKNTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

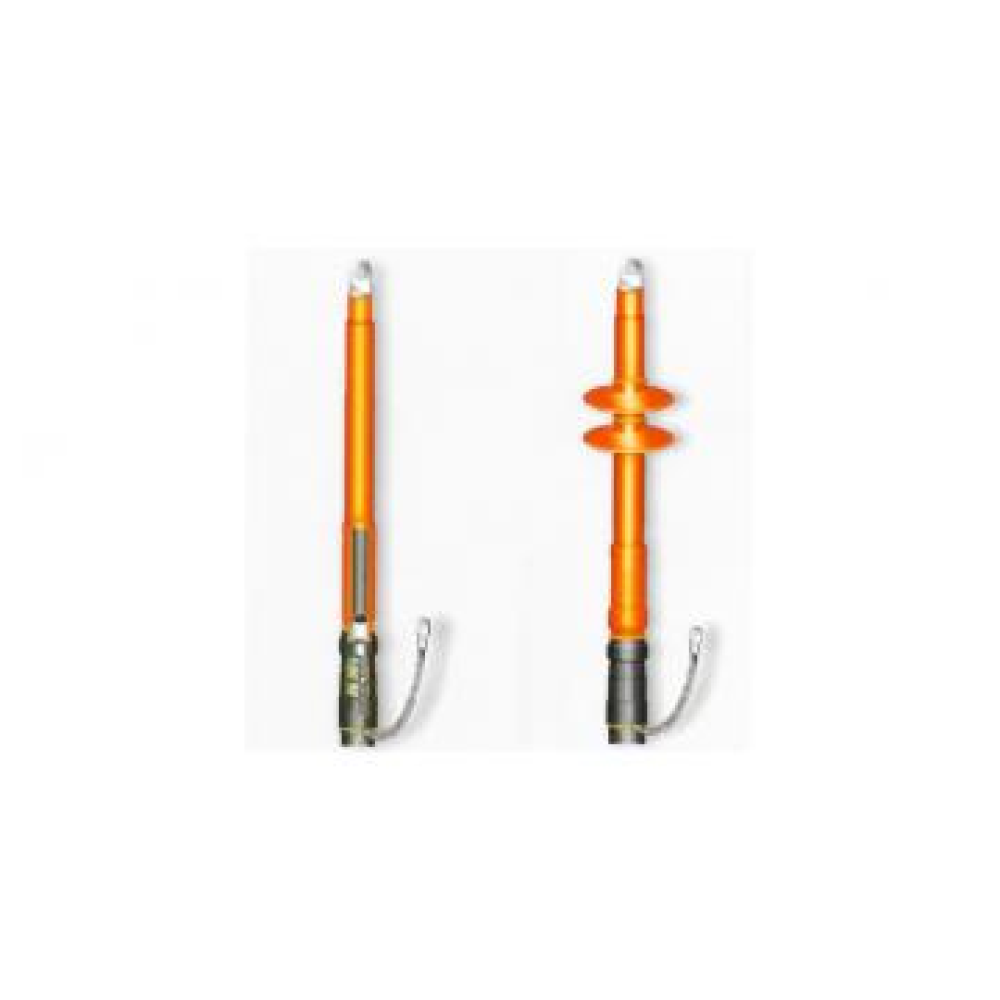

End couplings of the internal installation for a single-core cable with paper insulation for a voltage of up to 10 kV:

10KWTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

10KWTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

10KWTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

10KWTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

10KWTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

10KWTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

End couplings of the external installation for a single-core cable with paper insulation for a voltage of up to 10 kV:

10KNTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

10KNTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

10KNTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

10KNTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

10KNTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

10KNTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².
