End couplings for single-core cables up to 1 kV

End couplings of types 1KWTpON, 1KNTpON, 1KWTpO(pt), 1PKVTpON, 1PKNTpON, 1PKVNTpN, 1KVNTp, 1KVNTpN are designed for terminating single-core power cables and for connecting such cables to electrical devices of external and internal installations or overhead power lines with a voltage of up to 1 kV.

End couplings of the internal installation for single-core cable with paper insulation for voltage up to 1 kV:

1KWTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

1KWTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

1KWTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

1KWTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

1KWTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

1KWTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

End couplings of the external installation for a single-core cable with paper insulation for a voltage of up to 1 kV:

1KNTpON-1M — number of cores: 1 — cross-section of cores: 35–50 mm²;

1KNTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

1KNTpON-2 — number of cores: 1 — cross-section of cores: 150–240 mm²;

1KNTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

1KNTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

1KNTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

Heat-shrink couplings for single-core cables with paper insulation for DC voltage up to 1 kV (for tram-trolley lines and metro lines):

1KWTpO(pt)-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

1KWTpO(pt)-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

1KWTpO(pt)-5 — number of cores: 1 — cross-section of cores: 800 mm².

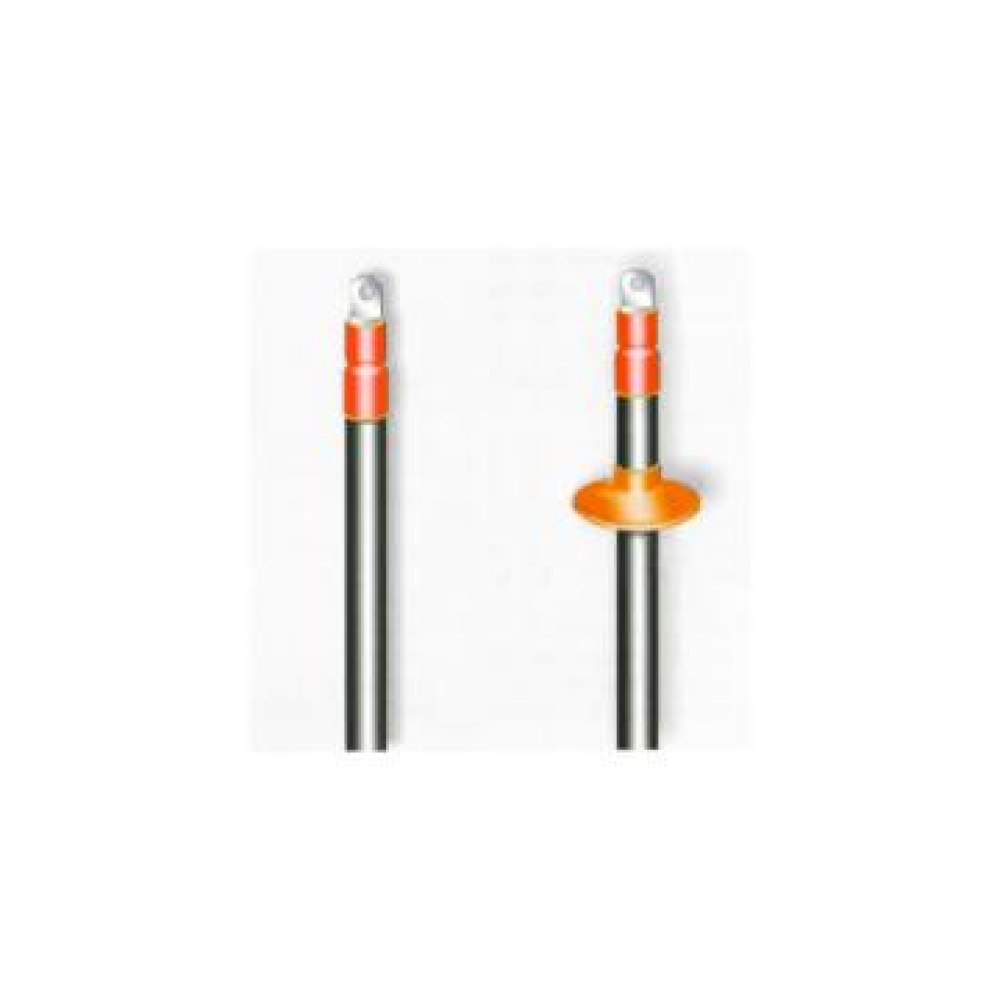

End couplings of the internal installation for single-core cable with plastic insulation for voltage up to 1 kV:

1PKVTpON-1M – number of cores: 1 – cross-section of cores: 35–50 mm²;

1PKVTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

1PKVTpON-2 — the number of cores: 1 — cross-section of cores: 150–240 mm²;

1PKVTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

1PKVTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

1PKVTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

End couplings of the external installation for single-core cable with plastic insulation for voltage up to 1 kV:

1PKNTpON-1M – number of cores: 1 – cross-section of cores: 35–50 mm²;

1PKNTpON-1 — number of cores: 1 — cross-section of cores: 70–120 mm²;

1PKNTpON-2 — the number of cores: 1 — cross-section of cores: 150–240 mm²;

1PKNTpON-3 — number of cores: 1 — cross-section of cores: 300–400 mm²;

1PKNTpON-4 — number of cores: 1 — cross-section of cores: 500–625 mm²;

1PKNTpON-5 — number of cores: 1 — cross-section of cores: 800 mm².

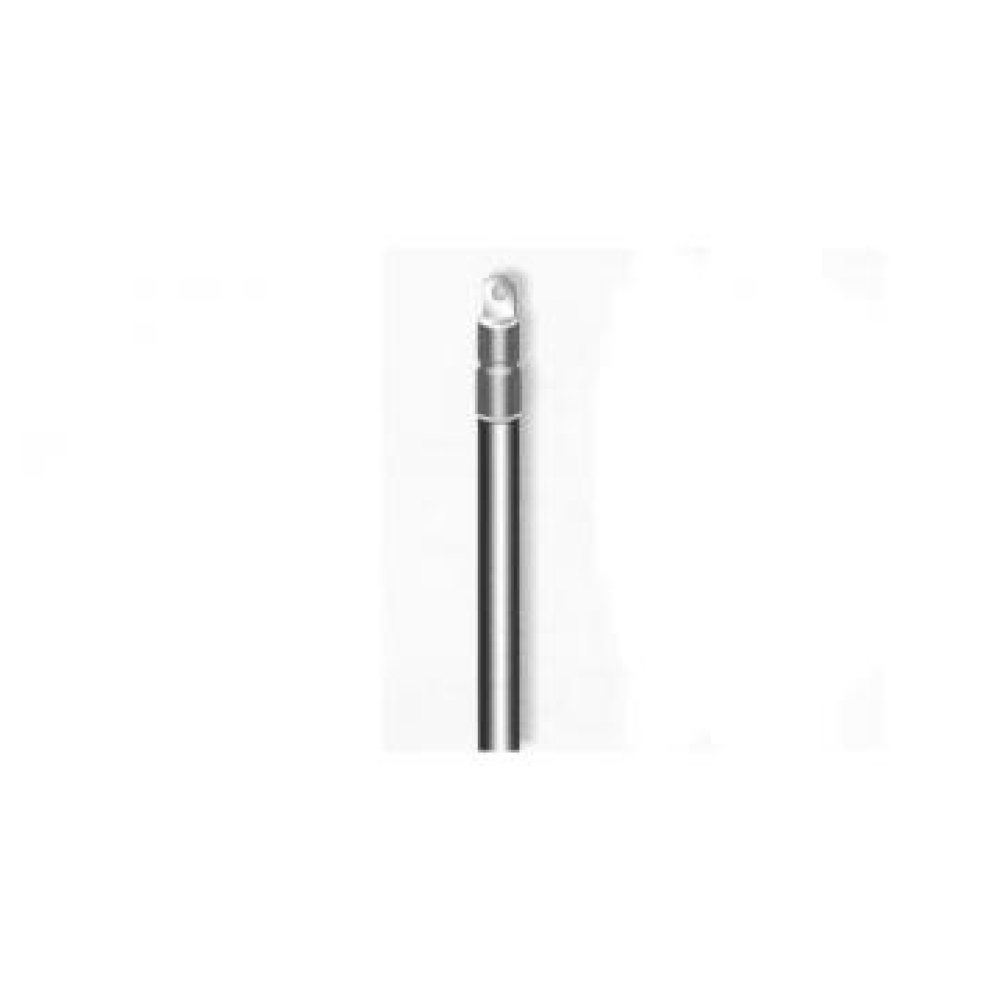

End couplings of internal and external installation for single-core cable with plastic insulation for voltage up to 1 kV:

1PKVNTpN-1(25-50) — number of cores: 1 — cross-section of cores: 25–50 mm²;

1PKVNTpN-1(70-120) — number of cores: 1 — cross-section of cores: 70–120 mm²;

1PKVNTpN-1(150-240) — number of cores: 1 — cross-section of cores: 150–240 mm²;

1PKVNTpN-1(300-400) — number of cores: 1 — cross-section of cores: 300–400 mm²;

1PKVNTpN-1(500-625) — number of cores: 1 — cross-section of cores: 500–625 mm²;

1PKVNTpN-1(800) — number of cores: 1 — cross-section of cores: 800 mm².

End couplings of the external installation for a single-core cable with paper insulation for a voltage of up to 1 kV:

1KVNTp-1(300-800) — number of cores: 1 — cross-section of cores: 300–800 mm².

Heat-shrinkable couplings for single-core cables with paper insulation for DC voltage up to 1 kV (for tram-trolley lines and metro lines):

1KVNTpN-1(300–400) with control cores — number of cores: 1 — cross-section of cores: 300–400 mm²;

1KVNTpN-1(500–800) with control cores — number of cores: 1 — cross-section of cores: 500–800 mm².
